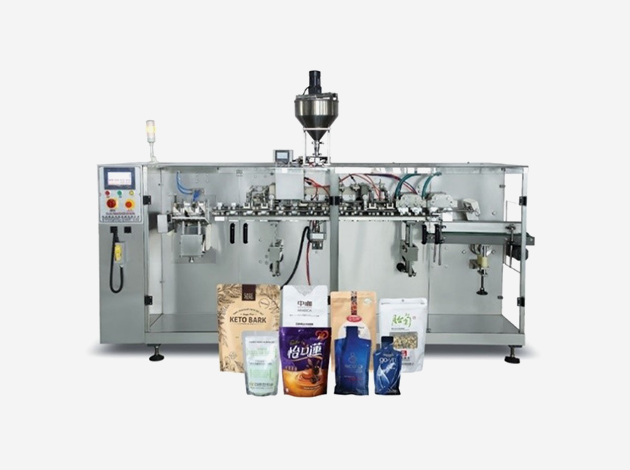

Horizontal Pick Fill and Seal machine
This Machine Models is Intermittent Motion Horizontal Form Fill & Seal Machnie Which Sealing Mechanism is Servo Base & Pouch Pulling with Servo Motor. Machine Equipped With Touch Screen Pannel with PLC base Control , Collar is used for different size of Pouch formation as a change over parts.
Technical Specification
| Packing Speed: | Up to 30 Pouches / Minute |
| Sealing System: | Pneumatic Type |
| Pouch size(width): | 120 mm- 320 mm |
| Pouch size(length): | 100 mm- 400 mm |
| Film Material: | Laminated Film / Co-Ex Film |
| Pouch Type: | 4 Side Seal, Stand Up Zipper Pouch, Pre-Made pouch. |
| Filling Range: | 20 Grams to 1000 Grams Depend on Product Bulk density & Filling System |
| Power Requirement: | AC 415V 50Hz, 3-Phase |
| Air Requirement: | Yes, 6 Bar Pressure |
| Filling System Offer on Machine: | • Multi-Head Combination Weigher • Linear Weigher • Auger Filler • Volumetric Cup Filler • Liquid Filler |
| Optional Accessories: | • Batch Coder • Gas Flushing • Pouch Shaking • Hopper Shaking • Dust Suction • Zip Opener • Take Away Conveyor |
| Appications: | Granules Like Sugar, Tea, Coffee, Seeds, Namkeen & Many more… Powder like Spices, Milk Powder, Coffee Powder, Floors & Many more… Liquid /Paste like Oil, Shampoo, Jam & many more |
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various type of Feeding System & Batch Coder
