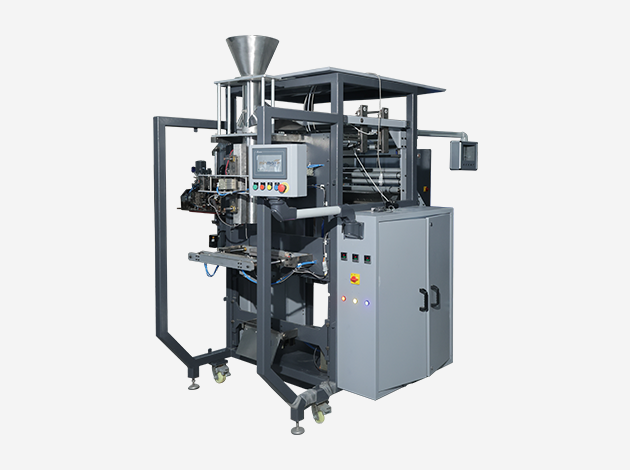

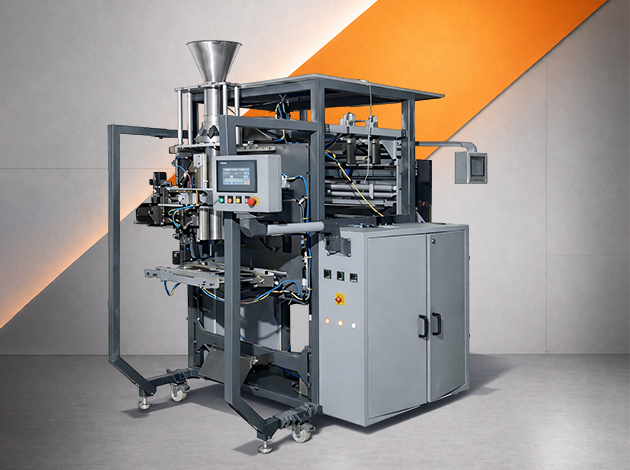

Collar Type Pneumatic VFFS Machine
This Machine Models is Intermittent Motion Vertical Form Fill & Seal Machnie Which Sealing Mechanism with Pneumatic Operated & Pouch Pulling with Electric Motor . Machine Equipped With Touch Screen Pannel with PLC base Control , Collar is used for dofferent size of Pouch formation as a change over parts
Technical Specification
| Packing Speed | Up to 20 Pouches / Min. |
|---|---|
| Pouch Size (Width) | 50 mm - 200 mm |
| Pouch Size (Length) | 50 mm - 300 mm |
| Sealing System | Intermittent Motion |
| Film Material | Laminated Film |
| Pouch Type | Center Seal Pillow Pouch / Pillow Pouch |
| Filling Range | Depend on Product Bulk Density & Filling System |
| Power Requirement | AC 415V 50 Hz, 3-Phase |
| Air Requirement | 7 Bar Pressure Continuous |
| Filling System offer on Machine | • Linear Weigher • Multi-Head Combination Weigher • Auger Filler • Volumetric Cup Filler |
| Optional Accessories | • Batch Coder • Gas Flushing • Bucket Elevator • Screw Feeder |
| Application |
•
Granules like Sugar, Tea, Coffee, Seeds, Namkeen & many more
•
Powder like Spices, Milk Powder, Coffee Powder, Flour & many more
|
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various type of Feeding System & Batch Coder
