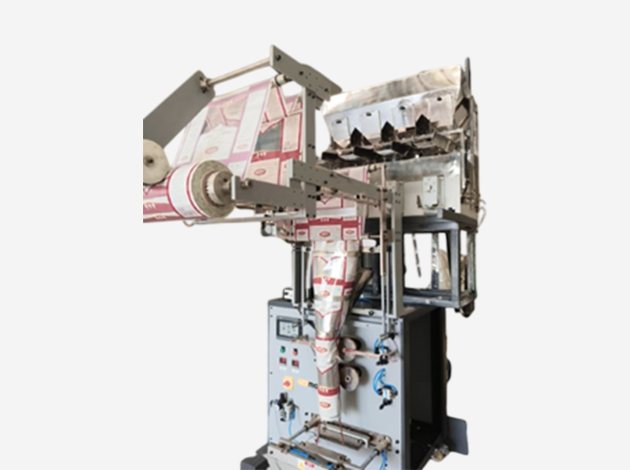

Pneumatic VFFS Machine
This Machine Models is Intermittent Motion Vertical Form Fill & Seal Machnie Which Sealing Mechanism with Pneumatic Operated & Pouch Pulling with Electric Motor . Machine Equipped With Touch Screen Pannel with PLC base Control , Collar is used for dofferent size of Pouch formation as a change over parts
Technical Specification
| Packing Speed: | Up to 60 Pouches / Minute |
| Sealing System: | Intermittent Motion |
| Type of Sealing: | Center Seal |
| Pouch size(width): | 75 mm- 200 mm |
| Pouch size(length): | 100 mm- 375 mm |
| Film Material: | Laminated Film |
| Speed Range: | Depend on Product Bulk density & Filling System |
| Power Requirement: | AC 415V 50 Hz, 3 Phase |
| Air Requirement: | Yes, 6 Bar Pressure |
| Filling System Offer on Machine: | • Linear Weigher • Multi Head Combination Weigher • Auger Filler • Volumetric Cup Filler |
| Optional Accessories: | • Types Of Batch Coder • Gas Flushing • Bucket Elevators • Screw Feeder • Dust Collector |
| Applications: | Granule Like Sugar, Tea, Coffee, Seeds, Namkeen & many more Powder like Spices, Milk Powder, Coffee Powder, Floors & Many more |
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various type of Feeding System & Batch Coder
