| System Type |

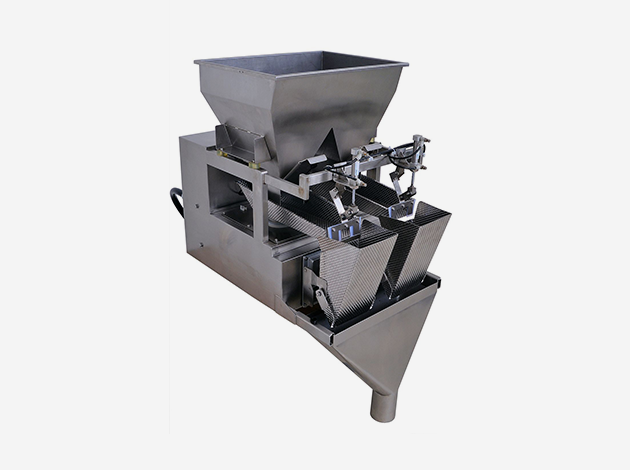

Semi-Automatic Two Head Weighing System |
| Weighing Technology |
Load Cell Based Independent Weighing Hoppers |
| Product Suitability |
Granules, Pulses, Namkeen, Seeds, Dry Fruits, Sugar, Tea, etc. |
| Weighing Range |
10g to 1000g (Customizable as per product) |
| Accuracy |
±1–2% (Product-dependent) |
| Speed |
Up to 10–25 fills per minute (depending on product & weight) |
| Control System |
PLC Based with Digital Touch Screen or Keypad Interface |
| Hopper Type |
Two Weighing Hoppers with Auto Tare & Discharge |
| Discharge Type |
Gravity or Pneumatic Flap Discharge into pouch/container |
| Material Contact Parts |
Stainless Steel 304 (Food Grade) |
| Power Requirement |
230V / 50Hz, Single Phase |
| Air Consumption |
Approx. 3–5 CFM @ 6 Bar (for pneumatic discharge) |
| Application |
Ideal for pouch filling machines, cup filler replacement, or manual packaging |
