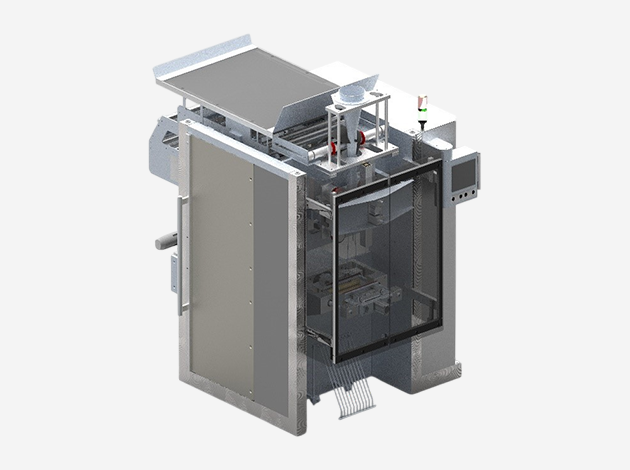

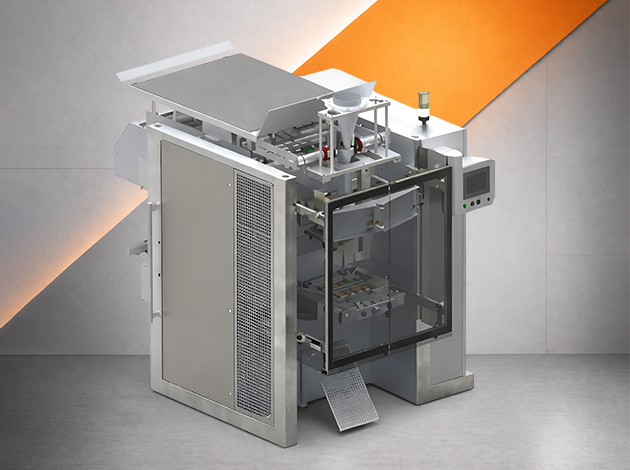

High Speed Servo Driven VFFS Machine - 4s
This Machine Models is Intermittent Motion Vertical Form Fill & Seal Machnie Which is Available with Single Servo Motor , Two Servo Motor , Three Servo Motor & Four Servo Motor option depend of Processing Speed requirement of the customer , Machines equipped with High End Control System with Touch Screen Panel
Technical Specification
| Packing Speed: | Up to 120 Pouches / Minute |
| Sealing System: | Intermittent Motion |
| Type of Sealing: | Center Seal |
| Pouch size(width): | 75 mm- 240 mm |
| Pouch size(length): | 100 mm- 375 mm |
| Maximum Film Reel Width: | 500 mm |
| Maximum Film Reel Diameter: | 450 mm |
| Film Material: | Laminated Film |
| Speed Range: | Depend on Product Bulk density & Filling System |
| Power Requirement: | AC 415V 50 Hz, 3 Phase |
| Air Requirement: | Yes, 6 Bar Pressure |
| Filling System Offer on Machine: |
• Multi Head Combination Weigher |
| Optional Accessories: |
• Types Of Batch Coder |
| Applications: |
Granule Like Sugar , Tea , Coffee , Seeds , Namkeen & many more |
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various type of Feeding System & Batch Coder
