| System Type |

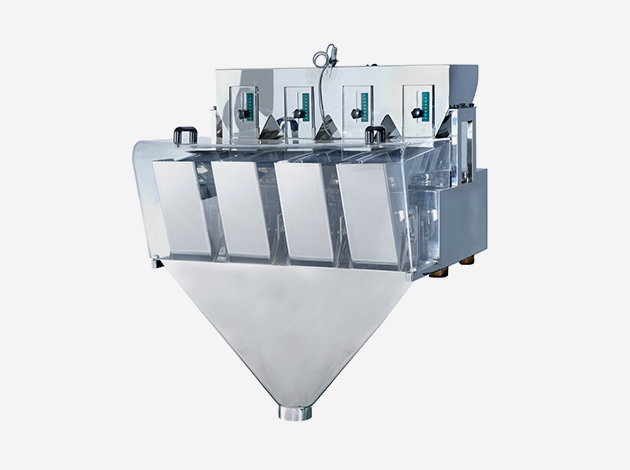

Automatic Four Head Weighing System |
| Weighing Heads |
4 Independent Load Cell Based Weighing Hoppers |
| Accuracy |
±1-2% (Depending on product type) |
| Speed |
Up to 25–50 fills per minute (based on product and pouch size) |
| Product Suitability |
Granules, Dry Fruits, Namkeen, Seeds, Pulses, Small Cubes, etc. |
| Weighing Range |
10g to 1000g (Customizable) |
| Control System |
PLC-based system with touch screen HMI |
| Material Contact Parts |
Stainless Steel 304 (Food Grade) |
| Power Supply |
230V / 50Hz, Single Phase |
| Air Consumption |
Approx. 5–6 CFM @ 6 Bar (if used with pneumatic discharge gates) |
| Discharge Type |
Pneumatic flap or motorized gate (as per requirement) |
| Application |
Used with pouch packaging, jar filling, or container filling systems |
