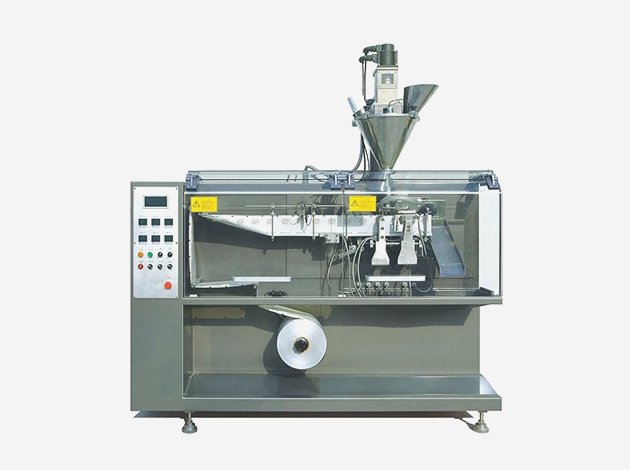

Horizontal Form Fill and Seal machine
This Machine Models is Intermittent Motion Horizontal Form Fill & Seal Machnie Which Sealing Mechanism is Servo Base & Pouch Pulling with Servo Motor. Machine Equipped With Touch Screen Pannel with PLC base Control , Collar is used for different size of Pouch formation as a change over parts.
Technical Specification
| Packing Speed | Up to 60 Pouches / Min. |
|---|---|
| Pouch Size (Width) | 70 mm – 180 mm |
| Pouch Size (Length) | 130 mm – 250 mm |
| Sealing System | Intermittent Motion |
| Film Material | Laminated Film |
| Pouch Type |
3 Side Seal, Stand-up Pouch, 3 Side Seal with Zipper Stand-up Pouch with Zipper, Shape Pouch |
| Filling Range | Depend on Product Bulk Density & Filling System |
| Power Requirement | AC 415V 50Hz, 3-Phase |
| Air Requirement | 7 Bar Pressure Continuous |
| Filling System Offer on Machine | • Linear Weigher • Auger Filler • Volumetric Cup Filler • Piston Filler for Liquid |
| Optional Accessories | • Batch Coder • Bucket Elevator • Screw Feeder |
| Application |
•
Granules like Sugar, Tea, Coffee, Seeds, Namkeen & many more
•
Powder like Spices, Milk Powder, Coffee Powder, Flour & many more
•
Liquid / Paste like Oil, Shampoo, Jam & many more
|
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various type of Feeding System & Batch Coder
