| System Type |

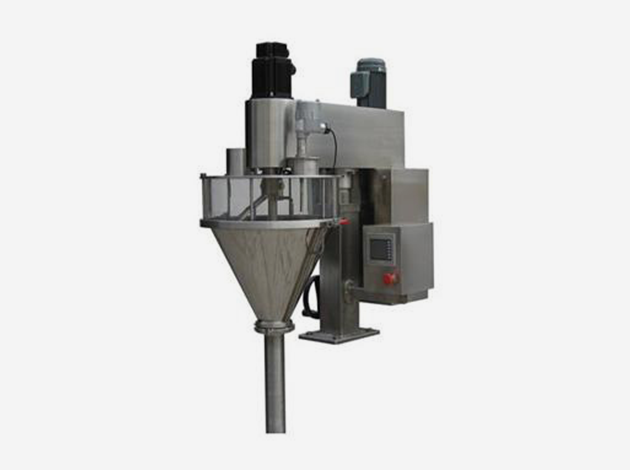

Servo Motor Driven Auger Filler System |
| Filling Technology |
Screw-based volumetric filling with servo precision |
| Product Suitability |
Powdered products like Spices, Flour, Protein Powder, Milk Powder, Talcum, etc. |
| Filling Range |
10g to 2000g (Customizable via auger & screw change parts) |
| Accuracy |
±1–2% (Product-dependent) |
| Speed |
Up to 20–50 fills per minute (depends on product & fill weight) |
| Drive Mechanism |
High-precision Servo Motor for auger rotation |
| Control System |
PLC Controlled with Touch Screen HMI |
| Material Contact Parts |
Stainless Steel 304/316 (Food & Pharma Grade) |
| Hopper Type |
Conical hopper with agitator (optional level sensor for auto refill) |
| Agitator |
Motorized agitator to prevent bridging or clogging |
| Discharge Type |
Bottom screw discharge through funnel/nozzle into pouch/container |
| Power Requirement |
230V / 50Hz, Single Phase |
| Integration |
Can be integrated with VFFS, HFFS, Jar/Bottle filling, or manual packaging |
| Application |
Ideal for free-flow & non-free-flow powder filling |
