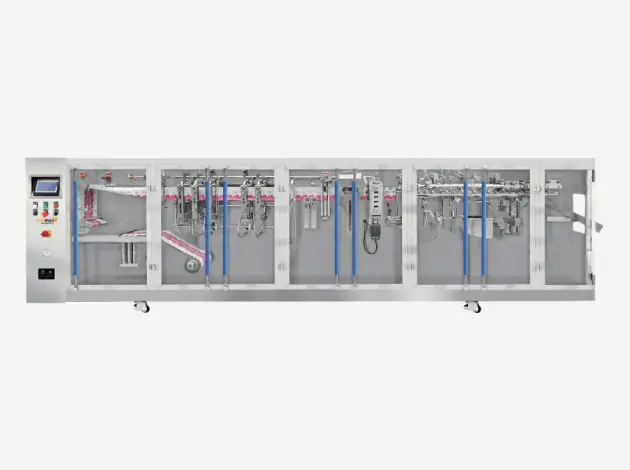

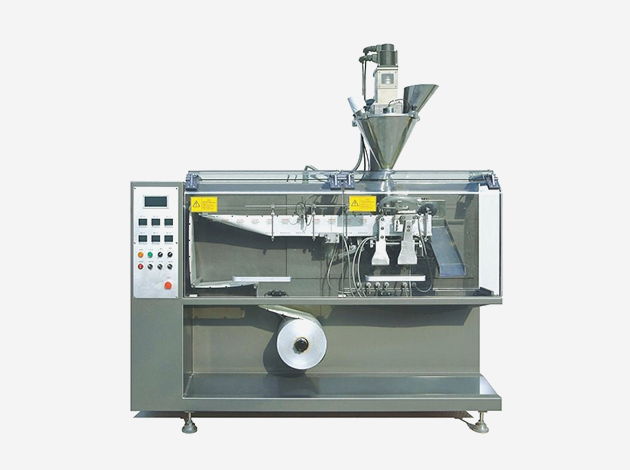

Horizontal Pick Fill and Seal Machine
This machine model is an intermittent motion horizontal form fill and seal machine, whose sealing mechanism is a servo base and pouch pulling with a servo motor. Machine Equipped With Touch Screen Panel with PLC Base Control, Collar is used for different sizes of pouch formation as a change over parts.
Technical Specification
| Packing Speed | Up to 60 Pouches / Minute |
|---|---|
| Sealing System | Continuous Motion |
| Type Of Sealing | Three Side Seal, Stand-up Pouch, Three Side Seal with Zipper, Stand-up Pouch with Zipper, Shape Pouch |
| Pouch Size (Width) | 60 mm – 200 mm |
| Pouch Size (Length) | 60 mm – 120 mm |
| Maximum Film Reel Width | 200 mm |
| Maximum Film Reel Diameter | 300 mm |
| Film Material | Laminated Film |
| Filling Range | Depend on Product Bulk density & Filling System |
| Power Requirement | AC 415V 50 Hz, 3-Phase |
| Air Requirement | Yes, 6 Bar Pressure |
| Filling System Offer on Machine |
• Linear Weigher • Auger Filler • Volumetric Cup Filler • Piston Filler for Liquid |
| Optional Accessories |
• Types Of Batch Coder • Bucket Elevators • Screw Feeder |
| Application |
Granules Like Sugar, Tea, Coffee, Seeds, Namkeen & many more Powder like Spices, Milk Powder, Coffee Powder, Floors & Many more Liquid /Paste like Oil, Shampoo, Jam & many more |
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various types of Feeding System & Batch Coder
