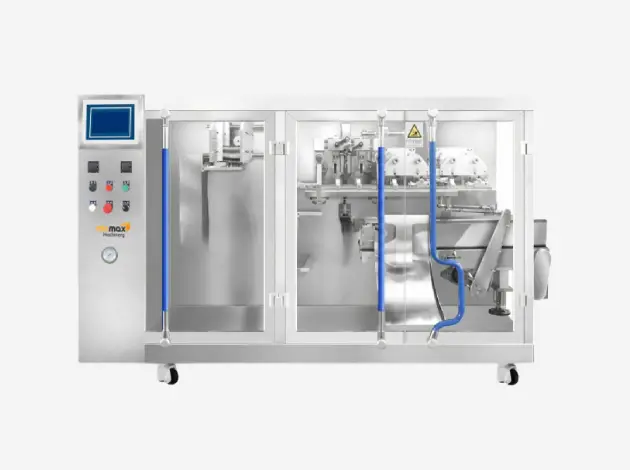

Horizontal Pick Fill and Seal Machine
This machine model is an intermittent motion horizontal form fill and seal machine, whose sealing mechanism is a servo base and pouch pulling with a servo motor. Machine Equipped With Touch Screen Panel with PLC Base Control, Collar is used for different sizes of pouch formation as a change over parts.
Technical Specification
| Packing Speed | Up to 60 Pouches / Minute | |
|---|---|---|
| Sealing System | Mechanical Type | |
| Pouch Size (Width) | 60 mm – 180 mm | |
| Pouch Size (Length) | 110 mm – 330 mm | |
| Film Material | Laminated Film / Co-Ex Film | |
| Pouch Type | Three Side Seal, Stand-up Pouch, Three Side Seal with Zipper, Stand-up Pouch with Zipper, Spout Pouch, Shape Pouch | |
| Filling Range | 20 Grams to 1000 Grams Depend on Product Bulk density & Filling System |
|
| Power Requirement | AC 415V 50Hz, 3-Phase | |
| Air Requirement | Yes, 6 Bar Pressure | |
| Filling System Offer on Machine |
• Multi-Head Combination Weigher • Linear Weigher • Auger Filler • Volumetric Cup Filler • Liquid Filler |
|
| Optional Accessories |
• Batch Coder • Gas Flushing • Pouch Shaking |
• Hopper Shaking • Dust Suction • Zip Opener • Take Away Conveyor |
| Application |
Granules Like Sugar, Tea, Coffee, Seeds, Namkeen & many more… Powder like Spices, Milk Powder, Coffee Powder, Floors & Many more… Liquid / Paste like Oil, Shampoo, Jam & many more |
|
Features
- Compact & Rugged Structure
- Easy & Quick Pouch Change Over
- Unwinder with Air Shaft
- Film End Detection
- PLC Controlled Functionality
- Digital Temperature Controller
- Integration with Various types of Feeding System & Batch Coder
