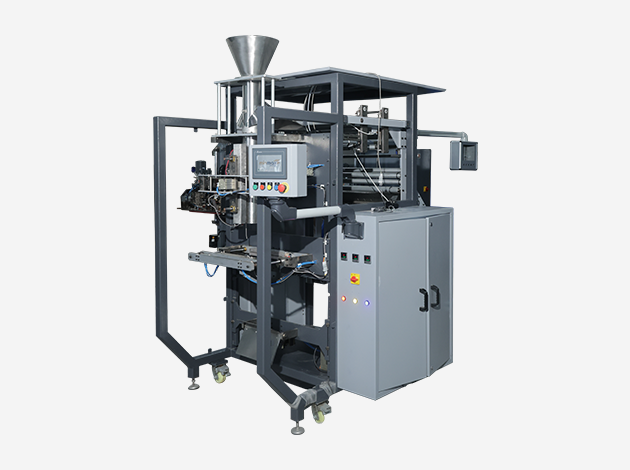

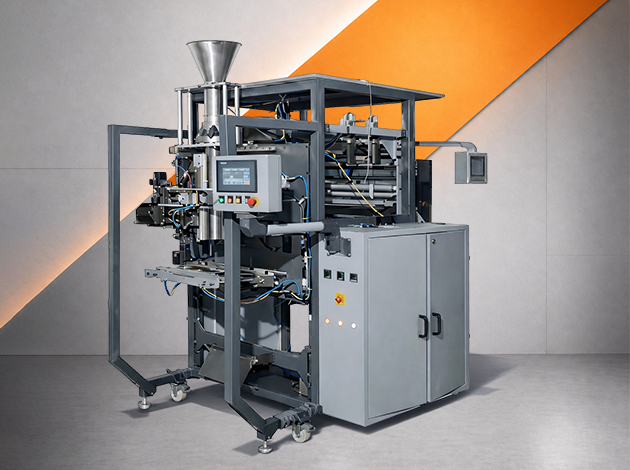

Multilane Sachet Filling Machine
The Multilane Sachet Filling Machine is a high-performance, fully-automated packaging solution designed for the efficient filling and sealing of sachets in multiple lanes simultaneously. Ideal for food, pharmaceutical, cosmetic, and chemical industries, it ensures precision dosing, consistent sealing quality, and maximized production throughput in compact spaces.
Technical Specification
| Packing Speed | Up to 50 Pouches / Min. |
|---|---|
| Pouch Size (Width) | 160 - 340 mm |
| Pouch Size (Length) | 100 - 500 mm |
| Sealing System | Intermittent Motion-Pneumatic |
| Film Material | Laminated Film |
| Pouch Type | Center Seal Pillow Pouch / Gusseted Pouch |
| Filling Range | Depend on Product Bulk Density & Filling System |
| Power Requirement | AC 415V 50 Hz, 3-Phase |
| Air Requirement | 7 Bar Pressure Continuous |
| Filling System offer on Machine | • Linear Weigher • Multi-Head Combination Weigher • Auger Filler • Volumetric Cup Filler |
| Optional Accessories | • Batch Coder • Gas Flushing • Bucket Elevator • Screw Feeder • Dust Collector |
| Application |
•
Granules like Sugar, Tea, Coffee, Seeds, Namkeen & many more
•
Powder like Spices, Milk Powder, Coffee Powder, Flour & many more
|
Features
- Compact and Rugged Structure
- Easy and Quick Pouch Change Over
- Unwind with an Air Shaft
- Film End Detection
- PLC-Controlled Functionality
- Digital Temperature Controller
- Integration with various types of feeding systems and batch coders
