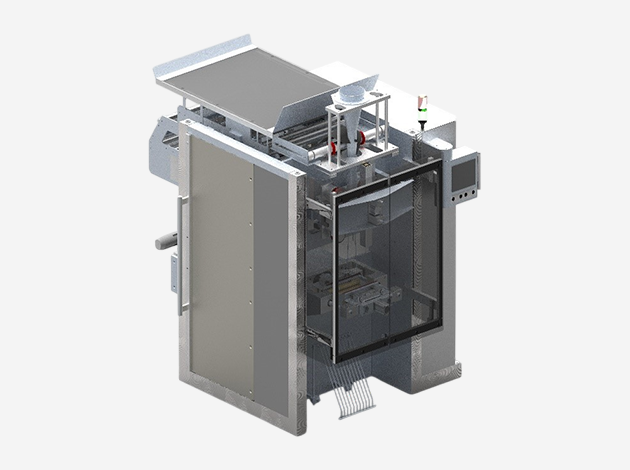

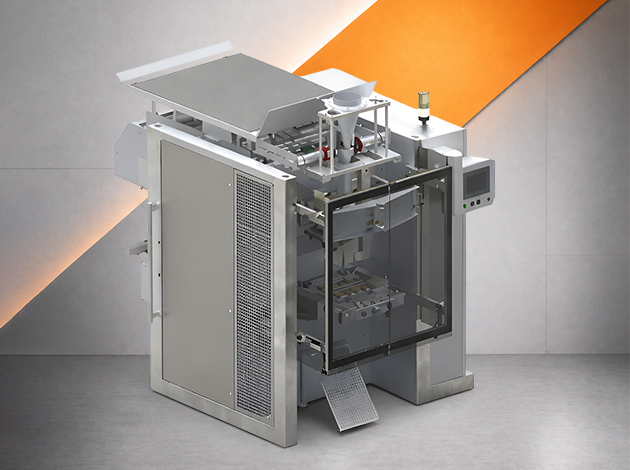

High Speed Servo Driven VFFS Machine - 3s
This machine is an intermittent motion vertical form fill and seal machine that is available with a single servo motor, two servo motors, three servo motors, or four servo motors, depending on the processing speed requirement of the customer. It is equipped with a high-end control system with a touch-screen panel.
Technical Specification
| Packing Speed: | Up to 100 Pouches / Minute |
| Sealing System: | Intermittent Motion |
| Type of Sealing: | Center Seal |
| Pouch Size (Width): | 75 mm – 250 mm |
| Pouch Size (Length): | 100 mm – 375 mm |
| Maximum Film Reel Width: | 500 mm |
| Maximum Film Reel Diameter: | 450 mm |
| Film Material: | Laminated Film |
| Filling Range: | Depend on Product Bulk Density & Filling System |
| Power Requirement: | AC 415V 50 Hz, 3-Phase |
| Air Requirement: | Yes, 6 Bar Pressure |
| Filling System Offer on Machine: |
• Multi-Head Combination Weigher |
| Optional Accessories: |
• Types Of Batch Coder |
| Application: |
Granules like Sugar, Tea, Coffee, Seeds, Namkeen & many more |
Features
- Compact and Rugged Structure
- Easy and Quick Pouch Change Over
- Unwind with an Air Shaft
- Film End Detection
- PLC-Controlled Functionality
- Digital Temperature Controller
- Integration with various types of feeding systems and batch coders
| Power Requirement | AC 415V 50 Hz, 3-Phase |
|---|---|
| Air Requirement | Yes, 6 Bar Pressure |
| Filling System Offer on Machine |
• Multi-Head Combination Weigher • Auger Filler • Volumetric Cup Filler |
| Optional Accessories |
• Types Of Batch Coder • Gas Flushing • Bucket Elevators • Screw Feeder • Dust Collector |
| Application |
Granules Like Sugar, Tea, Coffee, Seeds, Namkeen & many more Powder like Spices, Milk Powder, Coffee Powder, Flours & Many more |
