Technical Specification

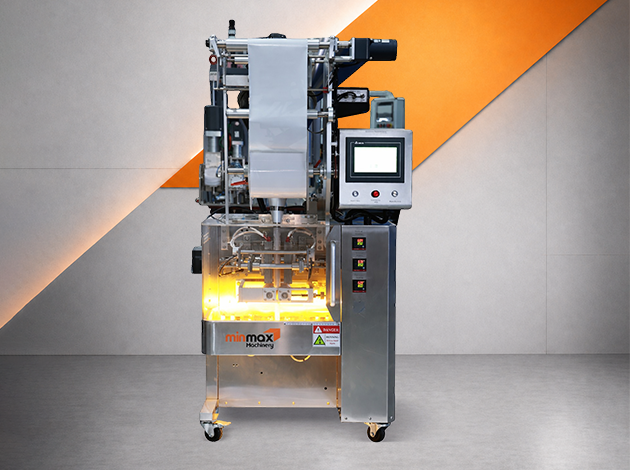

| Machine Model | MFS 150 |
|---|---|
| Packing Speed | Up to 25 Pouches / Min. |
| Pouch Size (Width) | 30 mm – 150 mm |
| Pouch Size (Length) | 30 mm – 170 mm |
| Sealing System | Intermittent Motion |
| Type of Sealing | Three side seal / four side seal |
| Maximum Film Reel Width | 420 mm |
| Maximum Film Reel Diameter | 320 mm |
| Film Material | Laminated Film |
| Filling Range | Depend on Product Bulk density & Filling System |
| Power Requirement | AC 415V 50 Hz, 3-Phase |
| Air Requirement | 7 Bar Pressure Continuous |
| Filling System Offer on Machine | • Linear Weigher • Multi-Head Combination Weigher • Auger Filler • Volumetric Cup Filler |
| Optional Accessories | • Batch Coder • Gas Flushing • Bucket Elevators • Screw Feeder |
| Application |
• Granules Like Sugar, Tea, Coffee, Seeds, Namkeen & many more
• Powder like Spices, Milk Powder, Coffee Powder, Flour & Many more
|
Features
- Mild Steel Frame Structure
- Product Contact Parts with Stainless Steel
- Digital Photo Controller Unit – Datalogic or Panasonic Make.
- PLC Touch Screen Control System Delta.
- Standard brand Electric Motors & Accessories.
