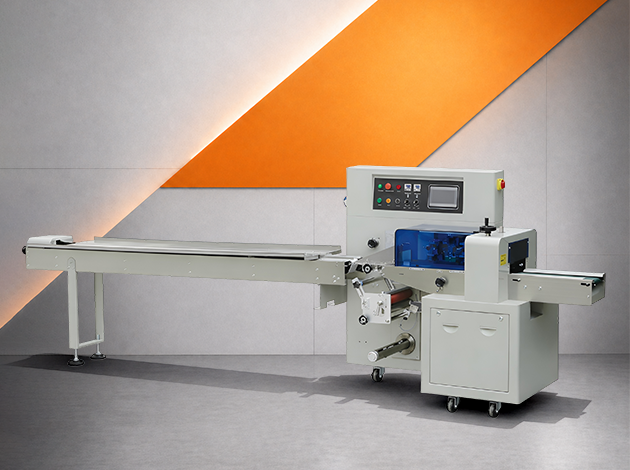

Horizontal Flow Wrap Machine
An automated packaging system that wraps products in a "pillow-style" pouch by forming, filling, and sealing film around items as they travel horizontally on a conveyor
| Packing Speed | Up to 30 Pouches / Min. |
|---|---|
| Packing Material | Plastic, Aluminium, Pure Aluminizer Etc. |
| Pouch Size (Width) | 50 - 350 mm |
| Pouch Size (Length) | 65 - 350 mm |
| Pouch Type | Back Sealing Pillow Pouch |
| Pouch Cutting Shape | Serrated Edge |
| Product Height | Max 40 mm / 60 mm |
| Machine Power | 220V / 50 / 60Hz, 2.4KW |
| Machine Drive Type | Electric |
| Machine Material | Carbon Steel with Coated |
| Package Material Width | Max. 340 mm |
| Package Material Thickness | 3 - 6 C |
| Package Material Thickness | Max. 720 mm |
| Servo | 5 KW |
| Application | • Biscuits, Chocolate Bars, Bar Soaps, Sanitary Pads, Gloves & many more |
